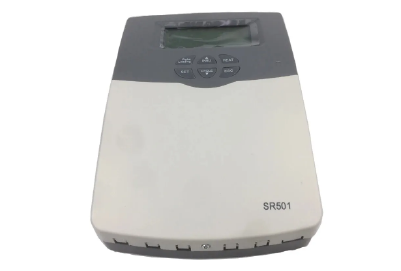

Solar Temperature Controller - SR501
Solar intelligent controller
Solar controller SR501, micro-computer automatic controller for solar water heater, It is used to control integrated un-pressurized solar thermal system. It is developed using the latest NEC high-performance microcontroller to achieve i...
Price is inclusive of 16% VAT
Quotation value may vary following any additional client needs e.g Installation and Transportation.
Solar intelligent controller
Solar controller SR501, micro-computer automatic controller for solar water heater, It is used to control integrated un-pressurized solar thermal system. It is developed using the latest NEC high-performance microcontroller to achieve intelligent control; All devices are industry standard and maintain good operation in cold, hot, and humid environments.
At the same time, it uses a dedicated clock chip and accurate time control. The controller uses LCD liquid crystal display, the appearance of beautiful, stable and reliable performance, easy to install, making it the best matching product for solar water heater
Solar controller main technical data:
1. Dimension: 205mmX150mmX50mm.
2. Power supply: AC100-240V，50Hz.
3. Accuracy of temperature measuring: ±2℃.
4. Range of tank temperature measuring: 0~99℃.
5. Accurancy of temperature control: ±2℃.
6. Power for water loading: ≤200W.
7. Power for self-heating cable: ≤600W.
8.Power for heating element：≤1500W/3000W (Two model number can be choice).
9. The electromagnetic valve: DC12V/ AC220V, (Optional pressure valve and low pressure valve).
※Pressure valve working pressure: 0.02Mpa~0.8Mpa (For direct water supply).
※ Low-pressure valve working press
.jpg)
