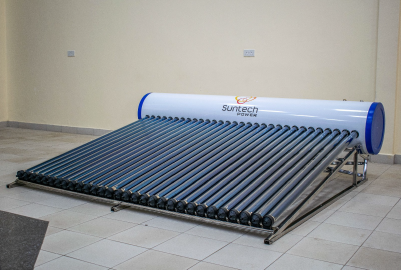

300L Pressurized Solar Water Heater
Indirect-Type Solar Water Heater
Features
Pressurized solar water heater also called Indirect Solar Hot water System supplies hot water efficiently, and can be connected directly with city water, more comfortable for hot water using.
Price is inclusive of 16% VAT
Quotation value may vary following any additional client needs e.g Installation and Transportation.
Indirect-Type Solar Water Heater
Features
Pressurized solar water heater also called Indirect Solar Hot water System supplies hot water efficiently, and can be connected directly with city water, more comfortable for hot water using.
It uses heat pipes to transmit heat energy and works rapidly.
It can be used in cold areas there is no water in the vacuum tubes, so the tubes will not be frozen to break in winter.
Each vacuum tube works alone, the system can be still in service even with occasional
Working Principle
The vacuum tube absorb the solar energy and turn it into heat energy, aluminum fins pass the heat energy to the heat pipe, the liquid medium in the heat pipe is heated by the heat energy, then turns into the gas medium, the gas medium flows up to the top of the heat pipe(condenser) and transfer the energy to the copper manifold header heat pipe. At the same time the gas medium turns into the liquid when cooled, and flows down. Keep recycling.
Specifications
Inner Tank: Stainless steel 304-2B(food grade)or 316L
Thickness:0.8mm-2mm
Outer Tank: Stainless steel 201/304/PVDF/Color steel
Insulation Layer: Polyurethane Foaming thickness as required
Bracket: Stainless steel 201/304/Color steel/Aluminum Alloy.
Heat Pipe Vacuum Tube:581800mm 3 target vacuum tube with AIN/AIN-SS/CU coating and copper heat pipe inside
Capacity: From l00L to 360L
Working Pressure: 0.6Mpa(6Bars)
Accessories: Electric Heater, Magnesium Anode, etc.
| MODEL | Absorbing Area (m3) | Vacuum tube | Tank Capacity | ||
| Diameter (mm) | Length (mm) | No. (Pcs) | |||
| SUNTECH 200L | 1. 6 | 58 | 1800 | 20 | 200 |
| SUNTECH 240L | 1. 92 | 58 | 1800 | 24 | 240 |
| SUNTECH 300L | 2.4 | 58 | 1800 | 30 | 300 |
