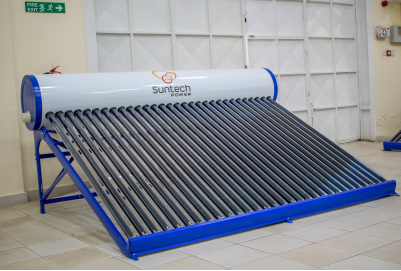

300L Non Pressure Solar Water Heater
High Efficiency Solar heaters
Non pressure solar water heating system also called Direct Solar Hot Water Heaters are designed for highly effective water heating in small and medium residential applications. Utilizing advanced technology, these solar water heaters featur...
Price is inclusive of 16% VAT
Quotation value may vary following any additional client needs e.g Installation and Transportation.
High Efficiency Solar heaters
Non pressure solar water heating system also called Direct Solar Hot Water Heaters are designed for highly effective water heating in small and medium residential applications. Utilizing advanced technology, these solar water heaters feature a series of glass heat pipes consisting of two sealed concentric tubes with a vacuum in between, maximizing heat transfer efficiency.
Features
- Super anti-erode outer tank and inner tank.
- Argon welding technology for inner tank guarantees a watertight system for durable useful-life.
- Tight polyurethane foaming ensures high heat-preservation ability.
- Optional electric heating device can be used in rainy, cloudy and cold days.
- Anti-corrosive bracket furnish steady support for different capacities.
Specifications
- Inner Tank: Stainless steel 304-2B(food grade) or 316L From 0.31mm to 0.51mm.
- Outer Tank: Stainless steel 201/304-BA/PVDF/Color steel.
- Insulation Layer: Polyurethane Foaming 50mm of as required.
- Bracket: Stainless steel 201/304/Color steel/Aluminum Alloy.
- Vacuum Tube: 58*1800mm or 471500mm.
- Capacity: From 100L to 400L.
- Heat Preservation:72hours.
- Optional Accessories: Assistant Tank, Electric Heater, Magnesium Anode, etc.
Working Principle
Water flows through the vacuum tubes, where it is heated directly by collected solar energy. This heated water continuously circulates through the storage tank using the thermosyphon principle, efficiently heating the tank contents. The Suntech direct solar heaters are suitable for lightly pressurized systems and can effectively handle mineralized water inputs.
Operating Conditions
- Water Quality: Ensure clarity and pre-treat water with TDS > 600 mg/l and hardness > 200 mg/l CaCO3 for optimal performance.
- Maximum Operating Temperature: 300°C
- Maximum Operating Pressure: 6 bar
| MODEL | Absorbing Area (m3) | Vacuum tube | Tank Capacity | ||
| Diameter (mm) | Length (mm) | No. (Pcs) | |||
| SUNTECH 200L | 1. 6 | 58 | 1800 | 20 | 200 |
| SUNTECH 240L | 1. 92 | 58 | 1800 | 24 | 240 |
| SUNTECH 300L | 2.4 | 58 | 1800 | 30 | 300 |
